NEW STRUCTURAL IN STOCK!

Straight Brace

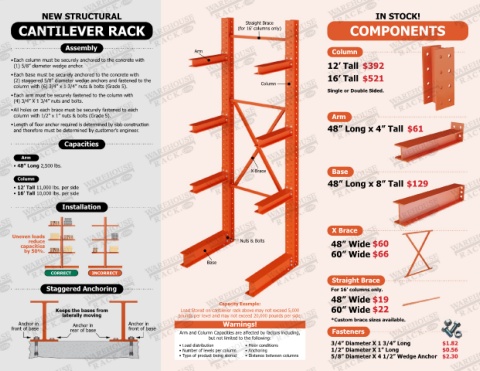

CANTILEVER RACK (for 16’ columns only) COMPONENTS

Assembly Arm Column

• Each column must be securely anchored to the concrete with
(1) 5/8” diameter wedge anchor. 12’ Tall $392
• Each base must be securely anchored to the concrete with
(2) staggered 5/8” diameter wedge anchors and fastened to the 16’ Tall $521
column with (6) 3/4” x 1 3/4” nuts & bolts (Grade 5). Column
Single or Double Sided.
• Each arm must be securely fastened to the column with
(4) 3/4” X 1 3/4” nuts and bolts.
• All holes on each brace must be securely fastened to each
column with 1/2” x 1” nuts & bolts (Grade 5). Arm
• Length of floor anchor required is determined by slab construction
and therefore must be determined by customer’s engineer. 48” Long x 4” Tall $61

Capacities

Arm
• 48” Long 2,500 lbs.
X-Brace Base
Column
• 12’ Tall 11,000 lbs. per side 48” Long x 8” Tall $129
• 16’ Tall 10,000 lbs. per side

Installation

X Brace
Uneven loads
reduce Nuts & Bolts $60
capacities 48” Wide
by 50%.
60” Wide $66
Base
CORRECT INCORRECT
Straight Brace
Staggered Anchoring For 16’ columns only.
48” Wide $19
Capacity Example:
Keeps the bases from Load Stored on cantilever rack above may not exceed 5,000 60” Wide $22
laterally moving pounds per level and may not exceed 20,000 pounds per side.
Anchor in Anchor in Anchor in Warnings! *Custom brace sizes available.
front of base rear of base front of base Arm and Column Capacities are affected by factors including, Fasteners
but not limited to the following:
• Load distribution • Floor conditions 3/4” Diameter X 1 3/4” Long $1.82
• Number of levels per column • Anchoring 1/2” Diameter X 1” Long $0.56
• Type of product being stored • Distance between columns 5/8” Diameter X 4 1/2” Wedge Anchor $2.30
